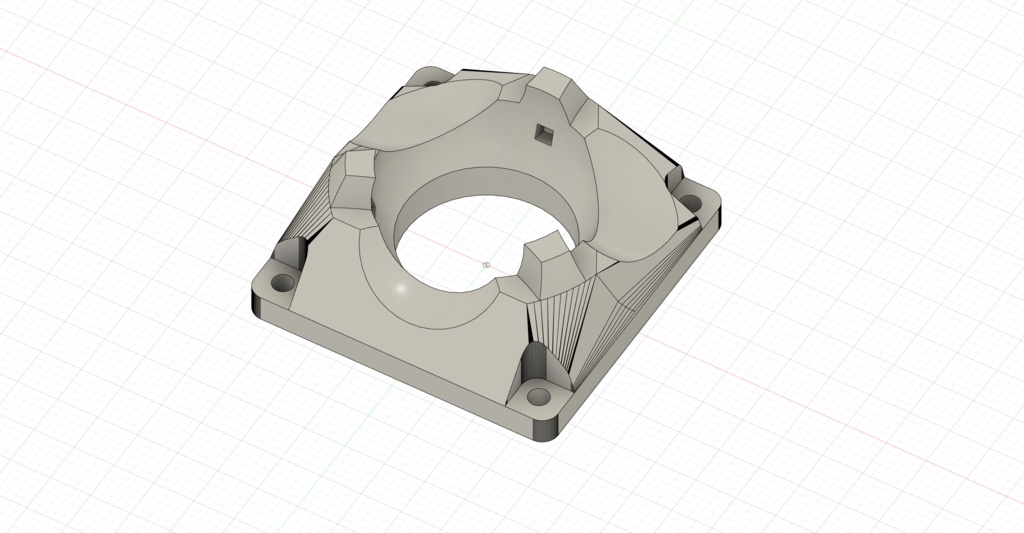

mapo48 ボールベース3Dモデルデータ / 3D data of mapo48 ball base
- ダウンロード商品¥ 1,000
======English follows Japanese====== mapo48のボールベースの3Dデータです。scad, stl, step形式のファイルが含まれています。保守用途などにお使いください。 <内容> ・34mmトラックボールベース2種 ・25mmトラックボールベース ・レンズベース(PMW3360/ADNS-5050どちらのレンズ形状にも対応) ・レンズベースとセンサーの配置サンプル(.kicad_pcb) <その他> ・支持球は直径2mmのセラミックや人工ルビーをご用意ください。 ・接着剤は以下が使用できます。 セメダイン 接着剤 ABS用 30ml https://amzn.to/46xqFcZ <プリント実績> ■JLCPCB File: .stlファイル Material: SLA(Resin) Black Resin Color: Grayish Black Surface Finish: Yes *一部3Dプリントサービスの製造規定を満たさない細かいパーツが含まれます。こちらのデータを用いた製造・発注は自己責任にてお願いします。 ======English====== This is 3D data of mapo48's ball base. Contains files in scad, stl, and step formats. Please use it for maintenance purposes, etc. <Contents> ・2 types of 34mm trackball bases ・25mm trackball base ・Lens base (compatible with both PMW3360/ADNS-5050 lens shapes) ・Lens base and sensor arrangement sample (.kicad_pcb) <Others> ・Please prepare a ceramic or artificial ruby with a diameter of 2 mm for the support ball. ・The following adhesives can be used. Cemedine adhesive for ABS 30ml https://amzn.to/46xqFcZ <Recommended printing conditions> ■JLCPCB File: .stl file Material: SLA(Resin) Black Resin Color: Grayish Black Surface Finish: Yes *Contains small parts that do not meet the manufacturing regulations of some 3D printing services. Please manufacture and place orders using this data at your own risk.
